Light SequencingUpdated 2 months ago

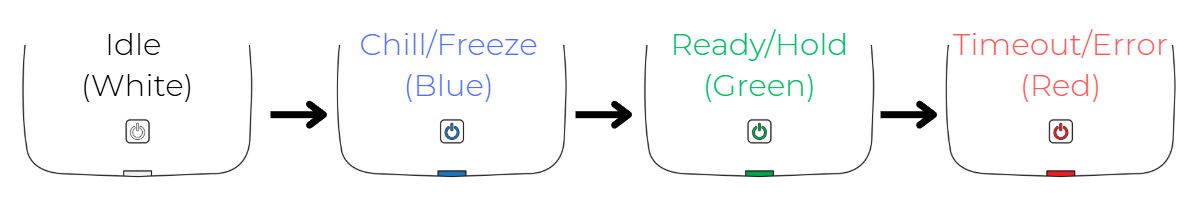

The Klaris Mini uses different light colors and arrangements to communicate to the user the status of the machine.

• Idle State: When the machine is first powered on, the power button and progress bar pulse white.
• Ice-Making Cycle: During a cycle, the power button and progress bar pulse between blue and white. The progress bar begins on the left side and gradually fills as the process continues.
• Cycle Complete: When the process is complete, the power button and progress bar blink green.
• Timeout Error/Hold Cycle Expired: If the 24-hour hold cycle expires, the power button and progress bar blink red.

Cancel a Run

• Hold down the power power button for 3 seconds. The power button and progress bar will blink red. To return to the idle state, press the power button again.

Delayed Start

• During delayed start, the power button pulses between blue and white, while the progress bar remains off.
• Once the delayed start finishes, the left side of the progress bar begins pulsing blue/white, indicating that ice-making has started.

Errors

• If an error occurs during a cycle, the power button turns solid red.
• The progress bar displays a combination of left/right segments, blinking/solid/off patterns to indicate a specific error code.
• To return to the idle state, press the power button.
